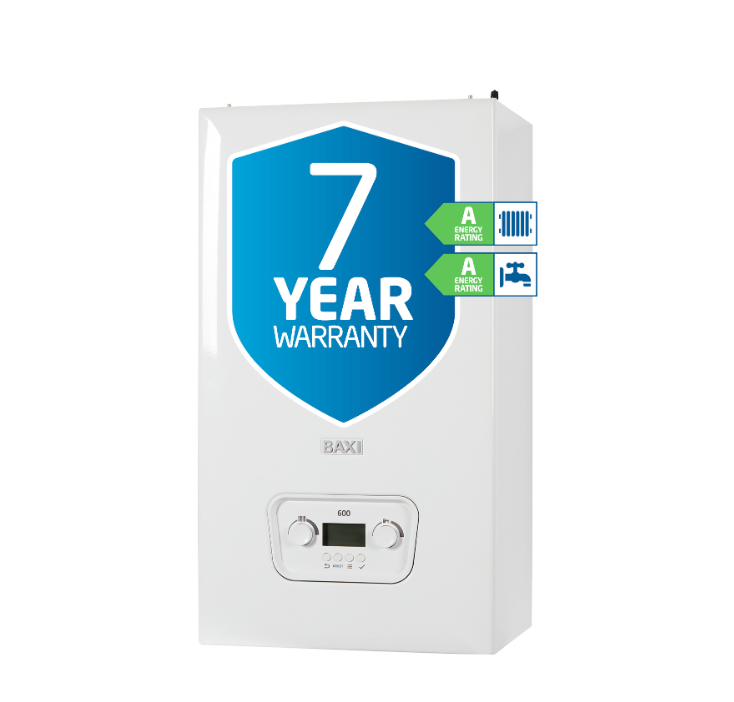

Baxi 619 Regular Boiler | 19kw
7712020 [BA619]


The Baxi 600 19kW 619 Regular has a 7 year parts and labour warranty* and is small enough to fit into a 290mm deep cupboard. It has a built in pipes behind facility within the boiler casing and brass hydraulics and is compatible with Megaflo Eco cylinders, making it the perfect choice for homes with high demand for hot water.

Features

  • 7-year parts and labour warranty*
  • Fits inside a standard kitchen cupboard
  • Works extremely quietly
  • Rear flue option for an even neater finish
  • Compatible with market-leading Megaflo Eco cylinder

Dimensions

  • Boiler width [A] = 370mm
  • Boiler height [B] = 625mm
  • Boiler depth [C] = 270mm
  • Side clearance [D] = 5mm
  • Upper clearance [E] = 190mm*, 35mm* if using rear flue
  • Lower clearance [F] = 120mm*, 35mm* in 300mm deep wall cupboard
  • Front clearance [G] = 5mm* in operation, 500mm* for servicing


Technical Features

  • Outputs: 13, 16, 19, 25 and 30kW
  • Top and in case rear flue
  • No pump overrun needed
  • Wall mounting plate
  • Front and side access for easy installation and service
  • Choice of flue lengths
  • Boiler Plus compliant


Baxi 600 Heat  13 Heat 16 Heat   19 Heat 25 Heat   30 Heat
Sales Code

Boiler only

7711998

7711999


 7712020 7712022 7712023

Controls and accessories
Operating mode selector switch with reset   Yes / no Yes Yes  Yes Yes Yes
User adjustable CH temperature   Range - e.g. 45° to 82° Yes  Yes  Yes Yes Yes
LED temp/status/fault diagnosis display  Yes / no Yes Yes Yes Yes Yes
Baxi twin channel wired programmer 7212443 Optional  Optional  Optional Optional Optional
Baxi room thermostat 720971601  Optional  Optional   Optional Optional Optional
Gas
Boiler Plus ErP  % 93.0  93.0 93.0 93.0 93.0
SAP 2009 annual efficiency (PCDB/SEDBUK) % 89.2 89.2 89.2 89.1 89.1
NOx class   6 6  6 6 6 6
ErP Product Information
NOx mg/kWh 18 20 21 24 24
Sound Power Level, Indoors  LWA dB 37 39 41 45 49
Space Heating Efficiency Class    A  A  A A A
Heat Input CH kW max gross (QnHs) 14.88  18.32 21.75 28.62 34.35
kW min gross (QnHs)  8.59 8.59 8.59 8.59 8.59
Heat Output CH (non condensing)   kW (Pn) 13 16 19 25 30
 kW (Pn) 7.5 7.5 7.5 7.5 7.5
Gas supply connection (mm)  22 22 22 22 22
Inlet supply pressure (natural gas) mbar 20  20 20 20 20
Maximum gas rate m3/hr  1.42  1.75  2.07 2.73 3.27
Mechanical and hydraulic
Compartment ventilation required Yes / no No No  No  No  No
Flow / return pipe size (mm)  22  22  22 22 22
Condensate discharge pipe size  (mm)  21.5  21.5  21.5  21.5  21.5
Electrical
Electrical supply   Volts / Hz  230V/50Hz  230V/50Hz   230V/50Hz 230V/50Hz 230V/50Hz
Permanent live required   Yes / no No No No No No
Switched live Yes / no  Yes  Yes Yes Yes Yes
Electrical power cable fitted as standard  1m of 3 core Yes  Yes Yes Yes Yes
Power consumption Watts  17 20 23 33 44
External fuse rating Amps  3  3  3  3 3
Internal fuse rating     1.6T 1.6T 1.6T 1.6T 1.6T
Boiler IP rating (electrical protection) Approval category   IPX4D  IPX4D  IPX4D  IPX4D  IPX4D
Pump overrun   Yes / no  No No No No No
Concentric flue system
Standard telescopic concentric flue Length in mm 315-500  315-500  315-500 315-500 315-500
Horizontal and Vertical concentric (60/100 mm)  Max equivalent length (m)  6  6 6 6 6
Reduction per 135° bend (m)  0.5  0.5  0.5 0.5 0.5
Reduction per 93° bend (m)  1  1  1  1 1
Horizontal and Vertical concentric (80/125mm)  Max equivalent length (m) 12 12 12 12 12
Weights
Installer lift weight (boiler) Max (kg)  17.4  17.4 17.4 17.4 19.5
Gross packaged boiler weight  (kg)  19.5 19.5 19.5 19.5 21.5
£924.17
£924.17
