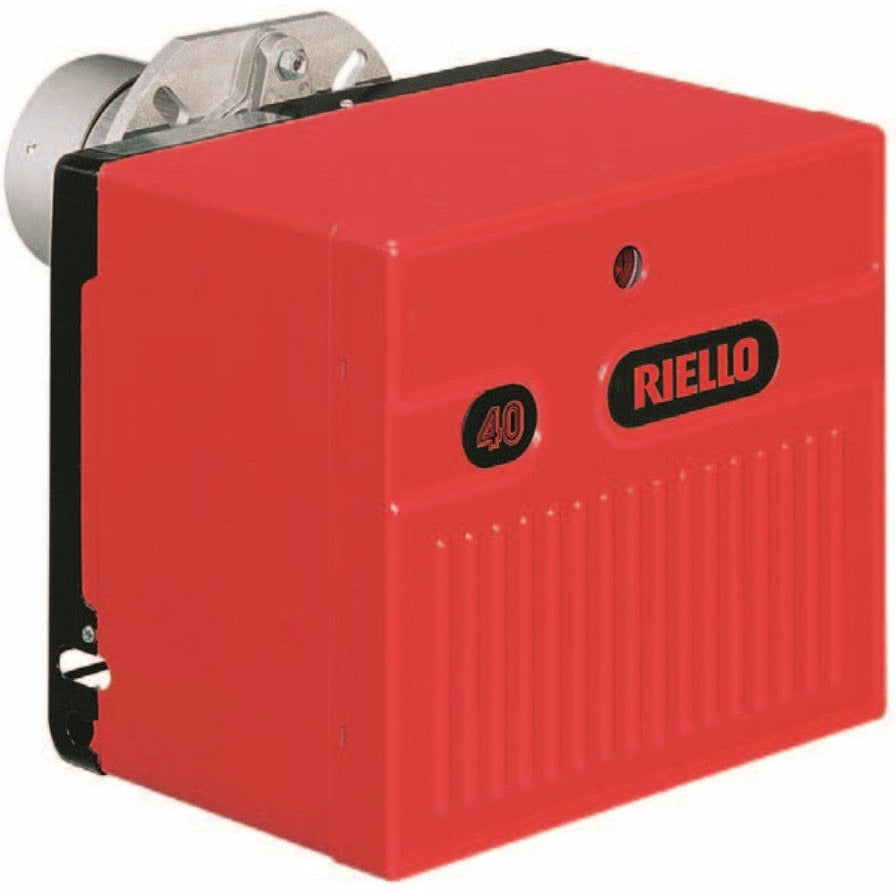

Riello R40 G10 Oil Burner | 54-120kw
107mm Blast Tube | 3746467

The Riello G10 is a high output kerosene burner

• Fuel input: Kerosene
• Output range of 54-120kW (184-410BTU)
• Suitable for large homes
• Powerful enough for industrial applications such as spray booths and powder coating.
• 108mm Blast Tube (approx)

• All the models use the same components designed by Riello for the Riello 40 G series. The high quality level guarantees safe working.
• In developing these burners, special attention was paid to reducing noise, to the ease of installation and adjustment, to obtaining the smallest size possible to fit into most sorts of boiler available on the market.
• All the models are approved by the EN 267 European Standard and conform to European Directives for EMC, Low Voltage, Machinery and Boiler Efficiency.
• All the Riello 40 G burners are fired before leaving the factory.

Part Number - 3746467

Burner Fuel Type - Kerosene

Output range - 54-120kW (184-410BTU)

Height - 262mm

Width - 305mm

Depth - 261mm

Blast tube (length x width)- 115mm x 100mm

Fuel consumption - 4.5-10 kg per hour

Electrical supply - Single phase, 230V 10% ~ 50Hz
