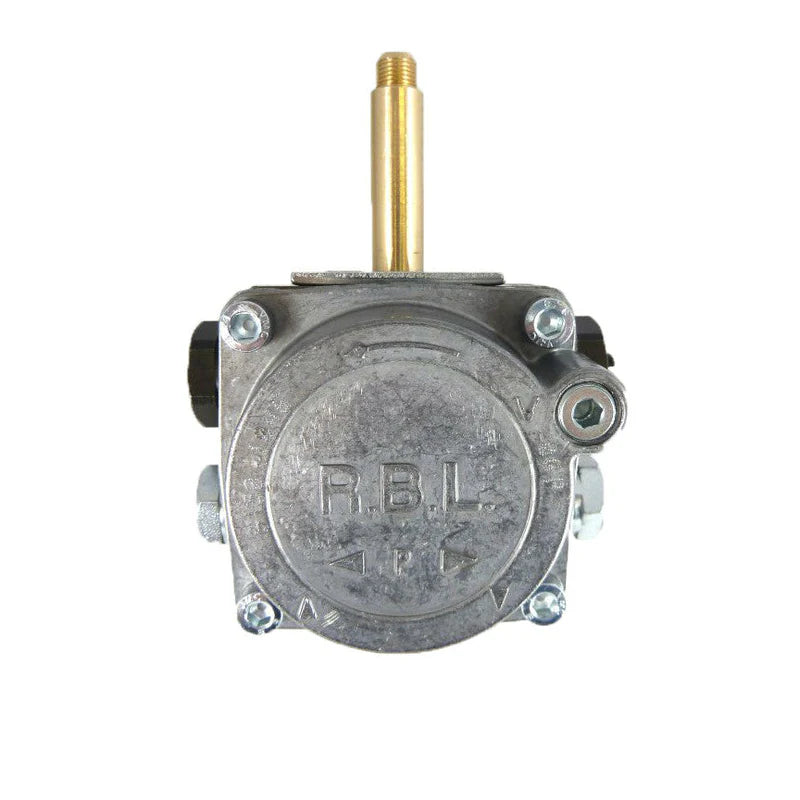

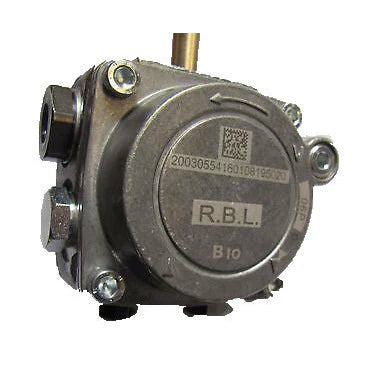

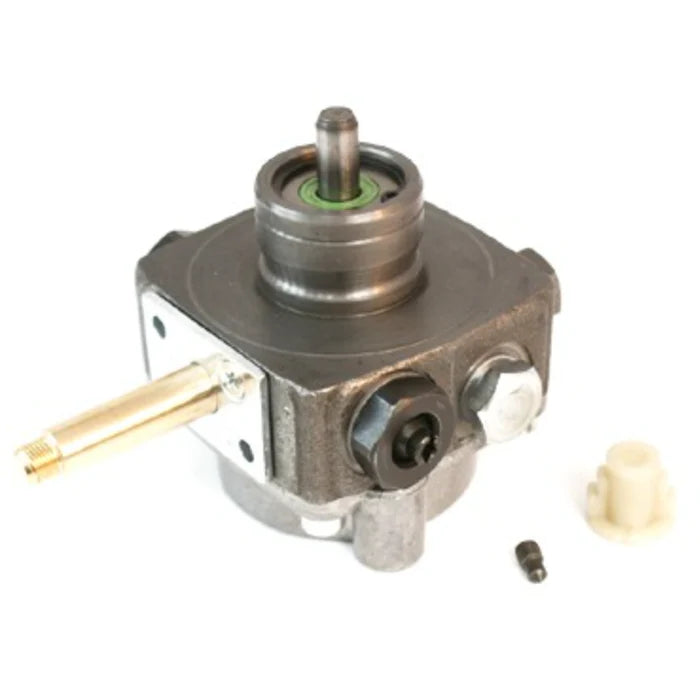

Riello R40 Oil Burner Pump | 20031996 | RBS03

Replace RBL Pump

This Riello pump is suitable for use with gas oil, kerosene and a 20% blend of biofuel.

• Replaces Riello Part Numbers 3020476 and 3007811
• Grant Part Number RBS03
• Warmflow Part 20031996
• Firebird Part ZE3020476
• Worcester Bosch Parts 87161153220 and 87186893410

Designed to allow working with one pipe or two pipe oil feed systems.

Dispatched units are normally factory set for single pipe systems at 8 Bar oil pressure, in order to obtain two pipes systems it is necessary to unscrew the return plug and insert the bypass screw supplied and then screw in the return hoses
